Ultra Thin Silicon GT-050 0.05mm

Ultra Thin Silicon Steel Core

  • Conventional silicon steels are widely used for electrical power apparatus, electrical components of industrial products, and home electronics. However, most silicon steel strips are thicker than 0.20mm and only applied to apparatus operated at industrial frequencies.
  • The ultra-thin silicon steel strips are suitable for being used at higher frequencies. The thickness of the silicon steel strips haVE been reduced to the world's thinnest level, reducing the core loss caused by eddy currents. Combined with the insulation coating technology, the lamination factor is improved.
  • The ultra-thin silicon steel strips improve energy consumption and reduce size in high-frequency reactors, transformers, and motors.
  • The ultra-thin silicon steel strips reduce cost and improve the equipment performance at high frequencies.

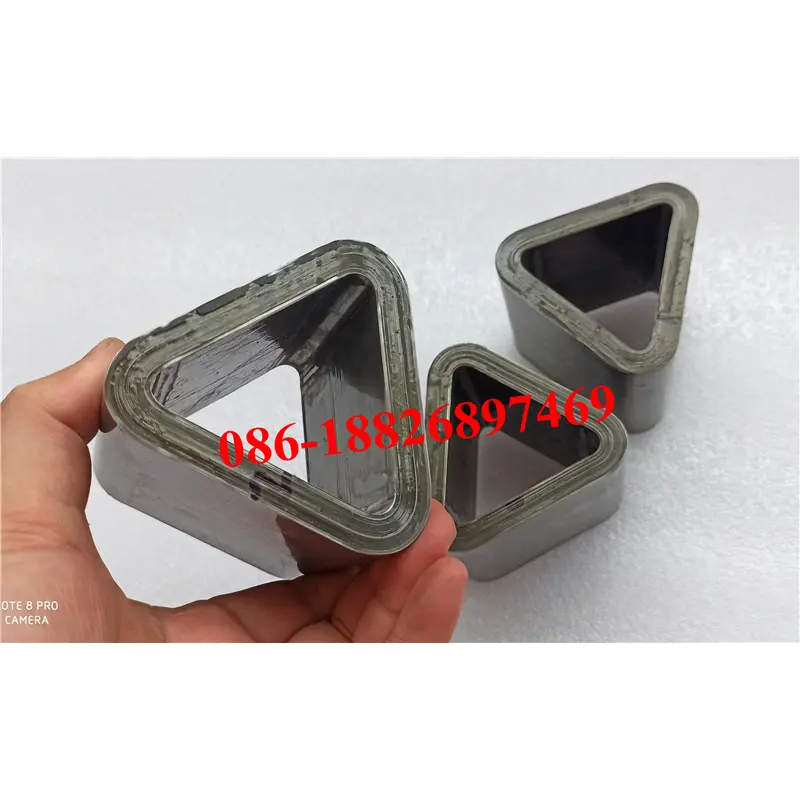

oriented thin gauge silicon steel strips gt-050
0.05MM gt-050 ultra thin silicon steel custom reactor transformer

Application area

GT-080 ultra thin silicon reactor transformer

Example

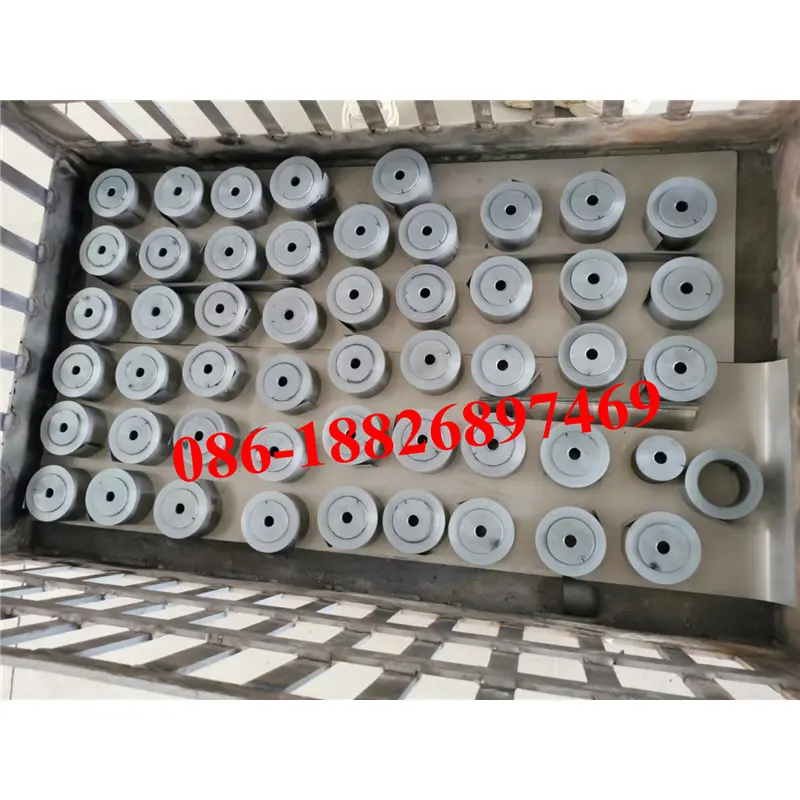

  • gt-050 japan ultrathin orientation silicon 0.05mm

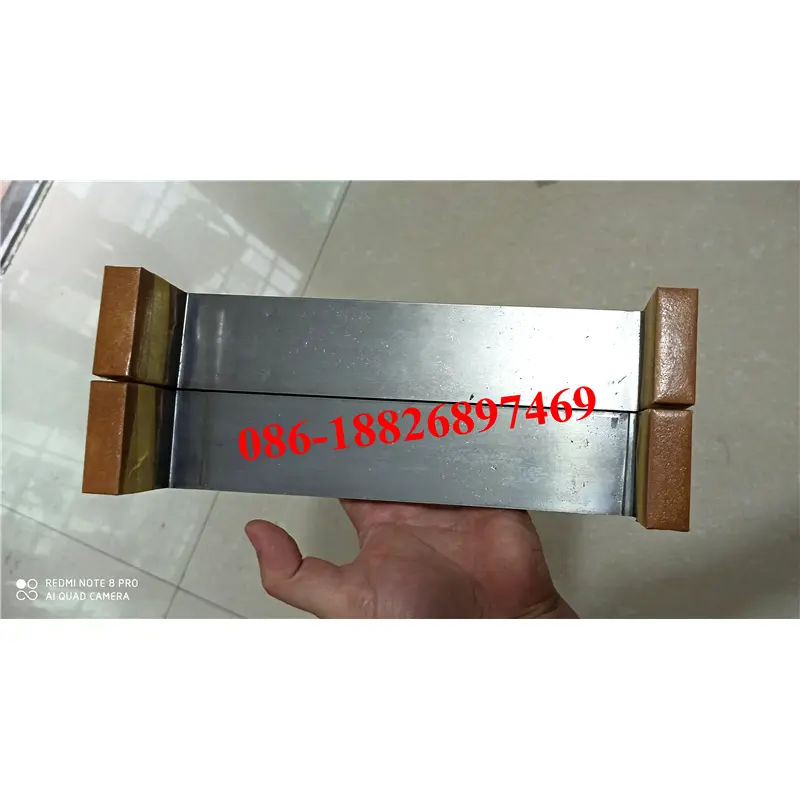

  • GT-050 0.05MM ultra thin silicon steel core gt-050

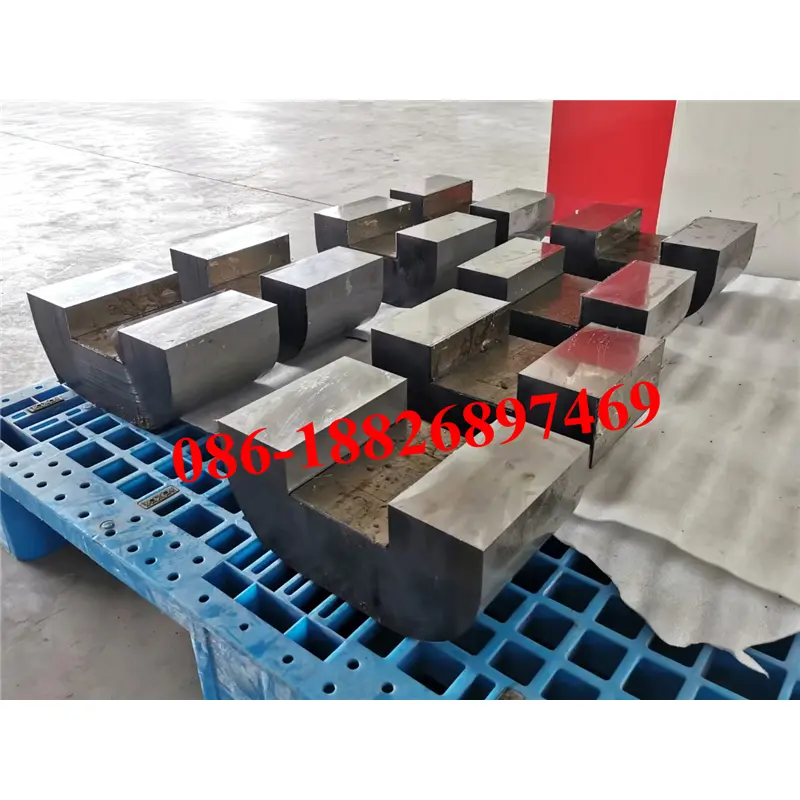

  • GT-050 0.05MM ultra thin electrical steel coil gt-050 silicon datasheet

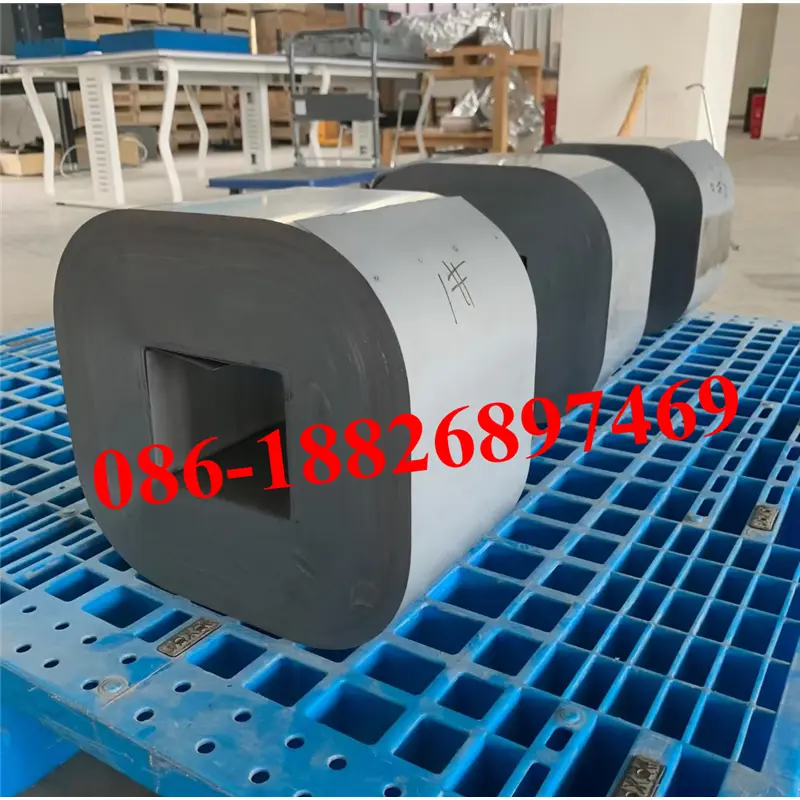

  • GT-050 0.05MM thin gauge electrical silicon steels strips materials
  • Materials

    We use the following soft magnetic materials to manufacture magnetic cores of different sizes:

    Steel mill Grade

    JFE

    23JGSD085/ 23JGH090

    Nippon Steel

    23ZDMH085/ 23ZH090

    Nikkindenji

    GT-040/ GT-050/ GT-080/ GT-100

    BAOSTEEL

    B18R065/ B20R065 / B23P085

    WISCO SILICON STEEL

    23QG095 / 23RK085 / 20Q760

    SHOUGANG SILICON STEEL

    23SQGD085 / 23SQG090

    Capability Limit dimensions:

    Main processes:

    Optional finishes:

    Standards:

    Quality control:
